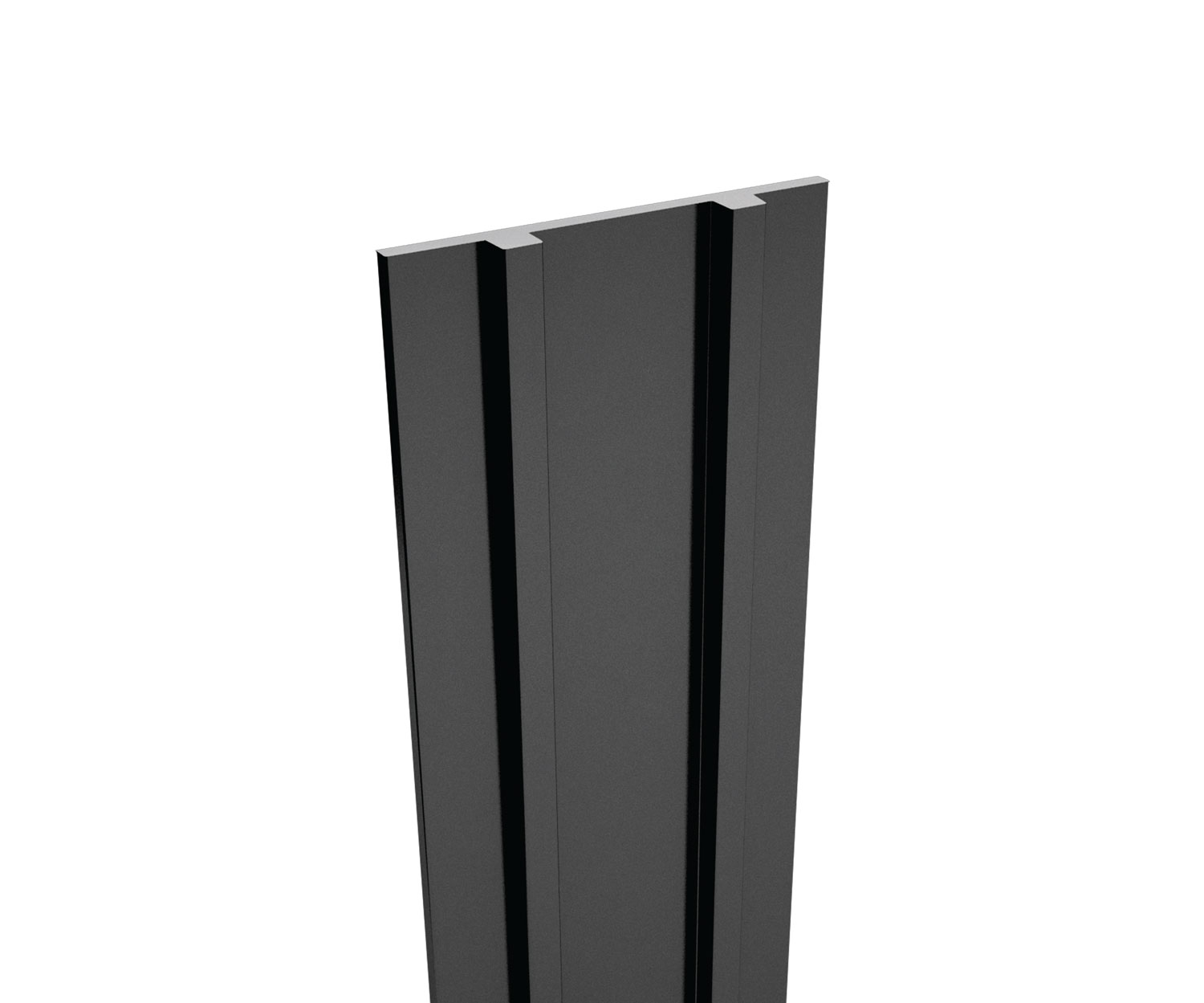

UIC60 Ribbed Base Plate Profiles

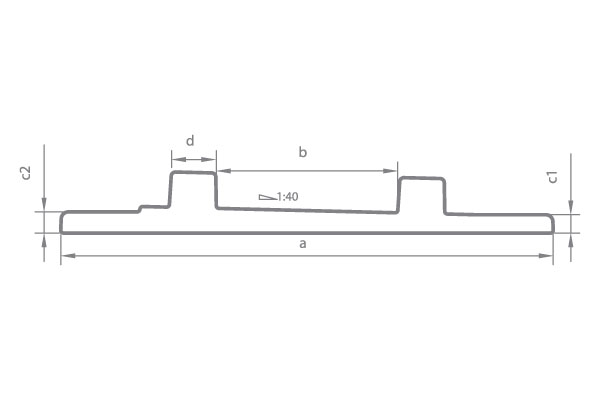

Dimensions: UIC 864
Tolerances: UIC 864
| Type of Baseplate | Weight (kg/m) |
a (mm) |
b (mm) |
c₁ (mm) |
c₂ (mm) |
d (mm) |
|---|---|---|---|---|---|---|
| Rph 6 | 57.60 | 370 | 152 | 13 | 15 | 33 |
| Rph 6 (17-19) | 69.17 | 370 | 152 | 17 | 19 | 33 |
| Rph 6 (17-19) | 64.09 | 370 | 152 | 13 | 15 | 33 |
| Rp UIC60 | 58.74 | 370 | 152 | 16 | 33 | - |
| Rp UIC60-0X | 70.33 | 370 | 152 | 20 | 33 | - |
